Boosting Unit Rau Cua Drilling
GYG4H
Cov cuab yeej saib xyuas
Cov cuab yeej siv no feem ntau yog siv los txhawb cov huab cua siab thaum lub sijhawm ua haujlwm hauv huab cua los ua kom yooj yim rau cov txheej txheem ntawm huab cua drilling.Cov khoom siv tag nrho txais kev sib xyaw ua ke nrog lub thawv-hom qauv, txhim kho lub cav diesel ua lub zog ntawm lub rooj sib txoos. Nws tau nruab nrog GYG4H compression chav tsev, thiab cov cuab yeej tswj kev tswj hwm yog nyob hauv nruab nrab rau kev tswj hwm hauv zos. Qhov system no ua tiav kev tiv thaiv thiab tswj cov tsis xws li chav tsev ceev, siab, thiab kub. Optionally, nws muaj peev xwm yuav nruab nrog cov ntaub ntawv kis tau tus mob interfaces rau tej thaj chaw deb saib xyuas raws li ib tus neeg siv yuav tsum tau, ua kom yooj yim rau ntawm qhov chaw nruab nrab saib xyuas.
Cov yam ntxwv tseem ceeb ntawm lub hauv paus configuration ntawm tag nrho cov chav tsev
1) Lub cav tsav siv Cummins KTA19 diesel cav, nrog lub zog siab tshaj plaws ntawm 469 kW @ 1500 rpm thiab lub zog tas li ntawm 400 kW @ 1500 rpm.
2) Lub tshuab compression siv GYG4H high-speed reciprocating piston compressor, nrog 2 lossis 3-theem compression thiab phau ntawv hloov.
3) Roj hmab hloov tau couplings (nrog kev tiv thaiv kev nyab xeeb).
4) Combination winding fin-type air coolers for cooling process gas (3 sets), compressor lubricating oil (1 set), engine tsho dej (1 set), thiab intercooler air (1 set).
5) Nruab nrog lub tshuab hluav taws xob tswj pneumatic valve rau kev thauj khoom tsis siv neeg, tshem tawm, thiab qhov cua nyab xeeb.
6) Tus maub los siv Siemens Smart-200 PLC maub los, muaj cov ntaub ntawv xim thiab lub vijtsam kov ua haujlwm. Nws los nrog cov ntaub ntawv sib txuas lus rau kev xa cov haujlwm tsis ua haujlwm mus rau chav tswj hwm hauv nruab nrab raws li xav tau.
7) Tag nrho cov chav tsev yog nyob rau hauv ib tug tiv thaiv npog nrog functions xws li cua tiv thaiv, tiv thaiv los nag, thiab rwb thaiv tsev.
8) Cov cuab yeej tau nruab nrog cov chaw taws teeb tswj, tso cai rau lub sijhawm thiab cov ntaub ntawv keeb kwm saib ntawm lub xov tooj ntawm tes.
Cov lus qhia rau kev siv
Txheej txheem kev thov:Cua Drilling
Installation Method: Integrated modular los ua ke, lub thawv-hom qauv, muab tso rau ntawm ib theem nto, thiab tuaj yeem ntsia tau thiab ua haujlwm yam tsis muaj lub hauv paus.
Kev khiav hauj lwm ib puag ncig: Yam tsawg kawg nkaus ambient kub: -45 degree
Public Engineering Conditions yuav tsum muaj nyob rau ntawm qhov chaw:
Fais fab mov: 380V / 50Hz (Fluctuation Range ± 10%), peb-theem tsib-xaim system, rau chav tsev hluav taws xob cua sov tracing fais fab mov. Cov Cuab Yeej Cuab Yeej: Muab 6-8 bar (roj-dawb, tsis muaj dej, tsis muaj plua plav), nrog cov dej lwg qis dua qhov kub thiab txias.
Cov txheej txheem roj muaj pes tsawg leeg (mol%): 100%, Cua.
Technical Specifications
| Chaw tsim tshuaj paus | Hubei Teweite fais fab Technology Co., Ltd |
| Compressor Qauv | GYG4H |
| Number of Compression Stages | 3 theem thiab 2 theem, manually switchable |
| Compression Lub tog raj kheej Diameter (mm) |
Φ105mm (2 lub tog raj kheej) Φ100mm (2 lub tog raj kheej) Φ65mm (2 lub tog raj kheej) |
| Number of Compression Cylinders | 6 |
| Lub tog raj kheej txias | Cua txias |
| Piston Ring Khoom |
Kauj Ruam 1: F-4 sau Theem 2 thiab 3: PEEK |
| Hom Valve | Mesh valve, valve phaj khoom PEEK |
| Lub tog raj kheej Lubrication | Roj injector, distributor lubrication, nrog roj ntws tiv thaiv |
| Piston Ceev (m / s) | 4.4 |
| Rated Qws Tag Nrho Load (KN) | 114 (C+T) |
| Mob stroke (mm) | 88.9 |
| Rated Ceev (rpm) | 1500 |
| Qhov siab tshaj plaws tso cai ncej zog ntawm Crankcase (Kw) | 500 |
| Ceev Range (rpm) | 750 ~ 1500 |
| Tus nqi vibration (mm / s) | Tsawg dua lossis sib npaug rau 18.0(GB/T7777-2003) |

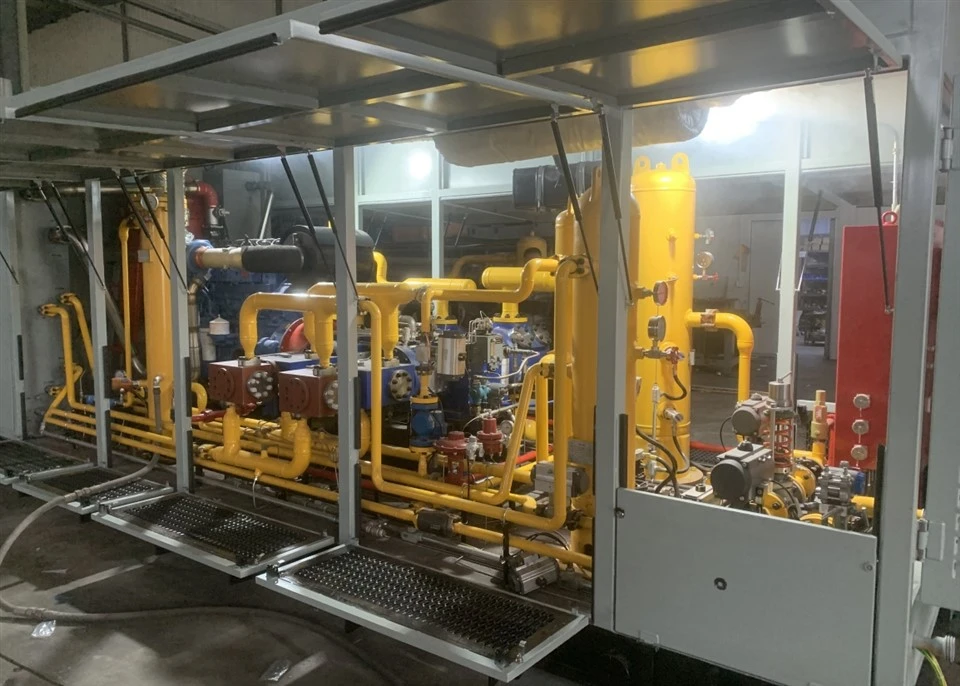

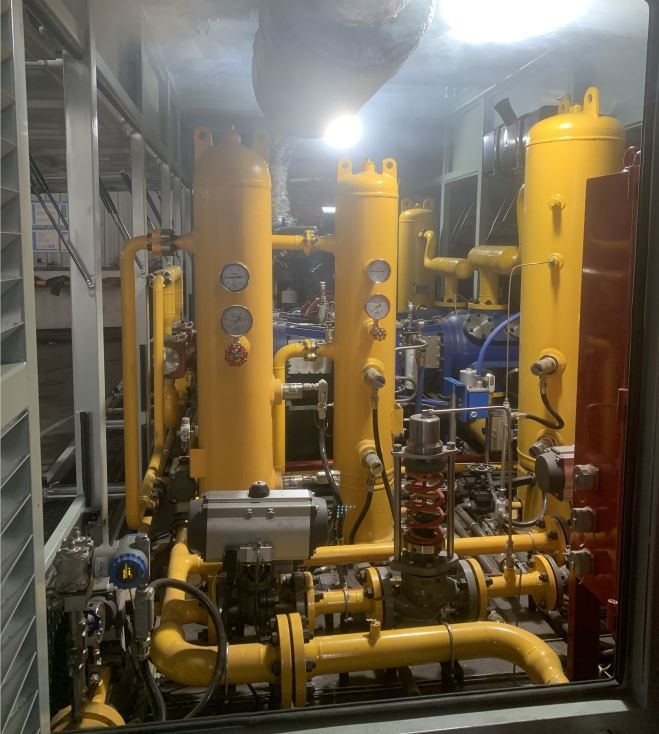

Turbocharging Unit Production & Application Images
